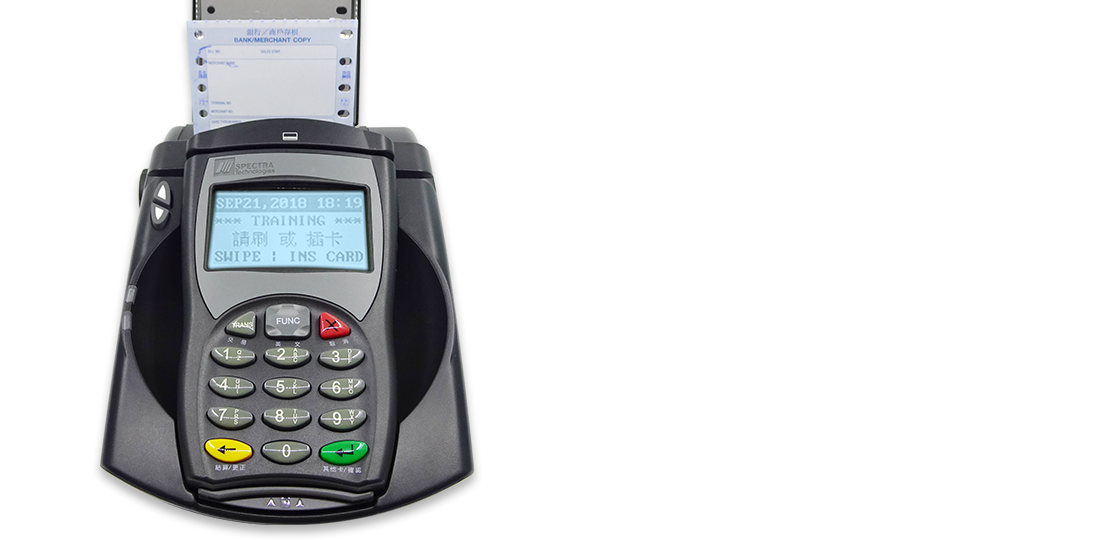

PR608 POS Terminal
PR608 upgraded to PCI PTS 5.x certification with New Case Colour!
PIN-enabled “hand-over” device completed with a fast impact printer. It is ideally designed for countertop transaction and supports various applications such as credit card, debit card, magnetic card, EMV chip card, loyalty, installment, small purchase, and promotion message in one terminal.
Specifications
| Table Header | Table Header |
|---|---|
|
|
|
|
CPU |
ARM9 32bit CPU with build-in RTC |
|
Memory |
128MB Flash, 16MB SDRAM |
|
IC Card Reader |
1 x EMV Compliant Reader |
|
MSR |
ISO 1&2&3 track options |
|
LCD |
128 x 64 dots LCD with LED backlight |
|
SAM |
3 x SAM sockets |
|
Real Time Clock |
Lithium backed (CPU built-in) |
|
Keypad |
14 keys + Navigation key(up, down, left, right) + on/off key |
|
Buzzer |
A single tone beeper |
|
Interfaces |
1 x RS232 Port @ 115200 bps (RJ11-4P4C), IR @115200bps, 1 x MicroSD Interface, 1 x USB 2.0 Host Port – support USB Disk only |
|
Power Input |
DC 5V, 500mA |
|
Operating Battery |
3.6V, 700mAh NiMH rechargeable battery |
|
Security |
Multiple tamper detectors, software tamper detection |
|
Certification |
EMV 4.0 Level 1 & 2, PCI PTS 5.x, CE/FCC/CCC |
|
|
|
|
CPU |
ARM9 32bit CPU with build-in RTC |
|
Memory |
16MB NANA Flash, 8MB SDRAM, 16KB (internal SRAM) |
|
Printer |
SMP130PBM Fan-fold Impact Printer with rotation knob, 7x9 or 7x7 dot printing, dot pitch 0.353mm, bidirectional Printing speed : 4.0LPS (line/sec), resolution 172dpi x 72dpi Paper thickness : 0.05 ~ 0.095mm per sheet, total 0.25 ~ 0.35mm |
|
Modem |
56K bps modem (RJ11 6P4C at LINE port) |
|
Interfaces |
2 x RS232 Port @ 115200 bps (RJ11-6P6C) 1 x Ethernet 10BaseT interface (RJ45, supports TCP/IP UDP/IP, DHCP, PPP and SSL protocol, optional) 1 x RJ11 Telephone attachment port 1 x USB 2.0 Host Port 1 x USB 2.0 Device Port IR interface with handset @115200 bps 1 x On/Off Switch 2 x Buttons (Paper feed forward and backward) 2 x Status LED (RGB) |
|
Power input |
DC 24V +/- 10%, 1.8A from external power adaptor for
impact printer |
|
Certification |
CCC, CE |
|
|
|
|
Handset |
162(L) x 92(W) x 40(H)mm, Without battery: 300g ; With battery: 350g |
|
Docking |
Without Paper Tray: 222(L) x 146(W) x 92(H)mm, 900g With Paper Tray: 310(L) x 146(W) x 172(H)mm, 1000g |
|
|
|
|
Temperature |
0-45 °C |
|
R.H. |
0-85% non-condense |
*Specifications are subject to change without prior notice.
